CBE 12V LED Fresh & Waste Water Tanks Level Kit

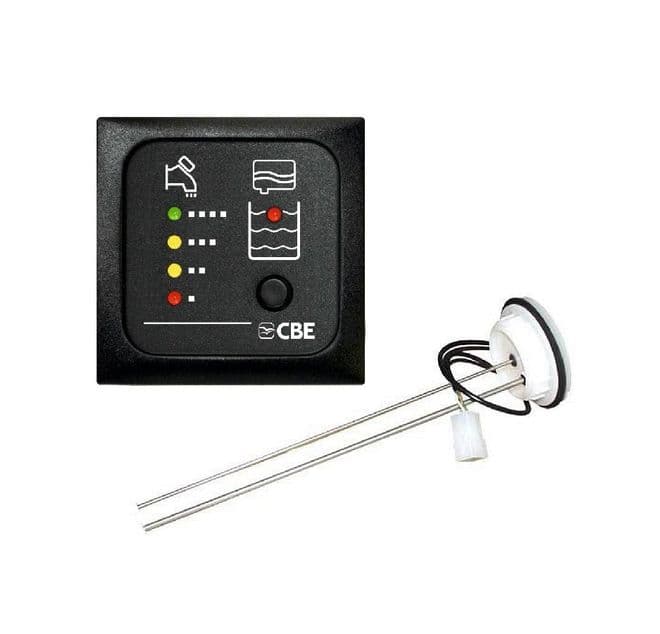

Fresh water and waste tank level kit from CBE consisting of a tank test panel with coloured LED indicators, tank probes and wiring harness. This kit is ideal if you are retro-fitting a water tank or if you don't have a level monitoring facility as part of your 12V control system. The LEDs light up when the test button is pressed and indicate FULL, 2/3, 1/3 and RESERVE.

This kit suits tanks up to 410mm in depth, the longest probe length is 275mm (see note below) and the test panel is compatible with CBS's modular switch and socket system.

Fresh water tank probe is supplied with a gasket and mounting nut for fitting to a 60mm diameter hole in your water tank and the wiring harness connecting the probe to the test panel is 4m long.

Waste water tank sensors are screw-in type.

Note: If using with tanks of a shallower depth than 400mm, the probe can be cut down to suit as follows:

• Shortest probe - Do NOT cut (this detects a full tank)
• Mid length probe - should be cut to approximately 1/3 of your tank depth
• Two longest probes - both should be cut to approximately 2/3 of your tank depth
